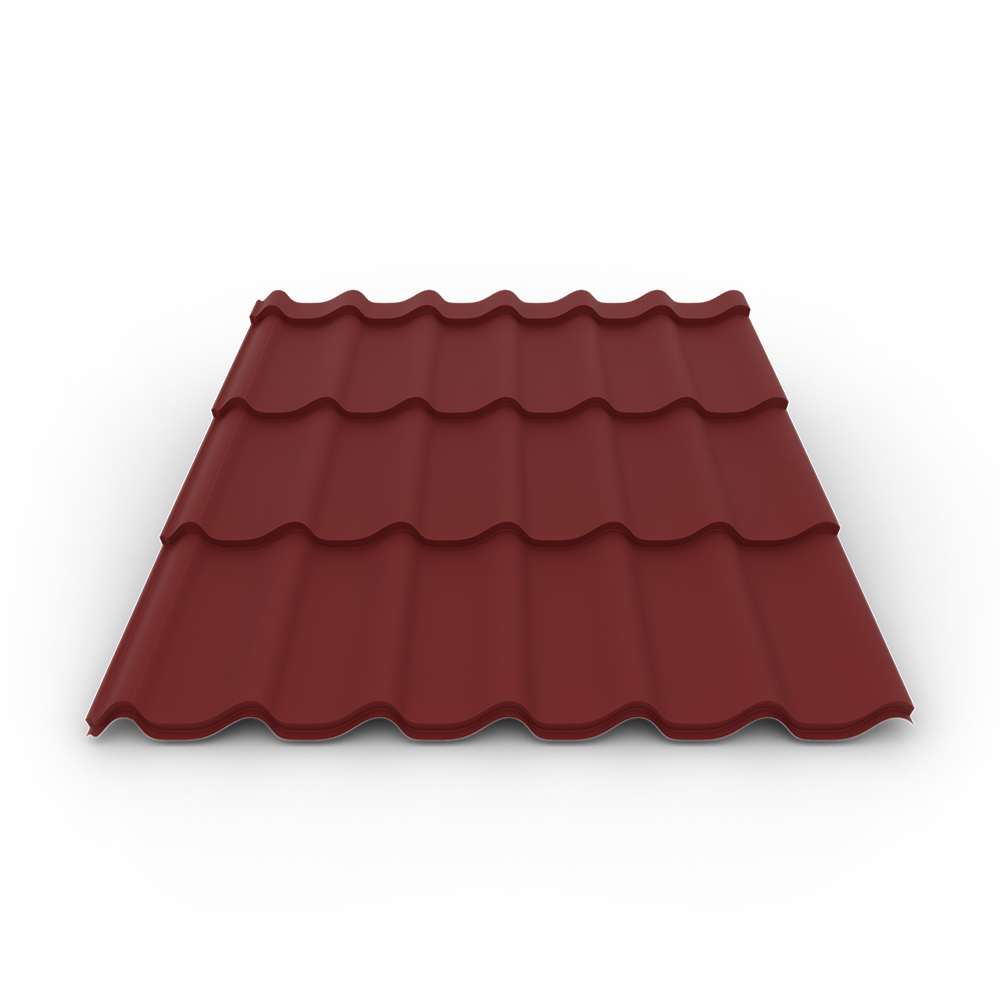

CLASSIC 3D
The classic profile reinterpreted through 3D relief, for roofs offering volume, elegance, and durable protection.
SMART BENEFITS
SMART Classic 3D is a metal roofing tile designed for residential projects where the classic appearance of the roof covering is enhanced by a well-defined three-dimensional profile. The wide waves and profile contour give the roof volume, visual rhythm and an elegant expression inspired by the traditional shape of roof tiles.
The Classic 3D profile has a depth of 23 mm and a module length of 350 mm. Its geometry contributes to the rigidity of the panels and creates a neat roof surface with clear lines and balanced proportions. The 1,120 mm effective width ensures efficient surface coverage, while the 350 mm installation pitch maintains the familiar installation principles of SMART metal roofing systems.
Thanks to its balanced design, Classic 3D metal roofing is suitable for both new-build and renovation projects. Its classic appearance, enhanced by the 3D profile, integrates harmoniously into traditional, contemporary or rural architecture.
SMART Classic 3D is manufactured from galvanized and pre-painted steel sheet, protected by a multilayer system against corrosion and weathering. It is available in glossy and matt finishes, allowing the roof to be adapted to the style of the house and the desired colour palette.
Its low weight, efficient installation and compatibility with the complete range of SMART accessories make Classic 3D a reliable solution for creating a durable, attractive and easy-to-maintain metal tile roof.
Classic 3D profile
Multilayer corrosion protection
Minimum maintenance (no regular interventions: painting, varnishing, treatments against insects, sun or humidity)
Complete range of accessories
Technical warranty of up to 15 years
Recyclable product FINISHES & COLORS
Matt
Metal sheet coated with a matt polyester layer, with low gloss, suitable for roofing and cladding.
Glossy
Metal sheet coated with a glossy polyester layer, with a smooth surface and a brighter appearance, suitable for roofing and cladding.
Displayed product colors could vary from one screen to another, according to the display's settings or filters used. For best accuracy please make sure that you ask a sales representative for a color plate sampler.
TECHNICAL SPECIFICATIONS
- Total width 1191 mm
- Useful width 1120 mm
- Profile depth 23 mm
- Tile step height 20 mm
- Total profile height 43 mm
- Battening distance 350 mm
- Minimum installation slope 14°
- Weight 4.0 Kg / m²
- Thickness 0.50 mm
- Length 440 - 6000 mm
SMART ACCESSORIES
ROUND FINNED CREST
ROUND FINNED CREST
Used to close the intersection between 2 roof slopes, straight or angle-mounted.
STRAIGHT RIDGE
STRAIGHT RIDGE
Used to close the intersection between 2 roof slopes, straight or angle-mounted.
WALL EAVES METAL ROOF TILE
WALL EAVES METAL ROOF TILE
It is mounted at the intersection between a wall or blind wall and a roof slope, at a straight angle. The pitch angle runs along the blind wall. It is fastened onto the wall.
VALLEY
VALLEY
Mounted at the intersection of two roof slopes. A 70 mm limit is marked along both sides of the valley axis, which determines the overlap of the tile panels.
GUTTER GRADE
GUTTER GRADE
It is mounted on the wooden structure intended for fixing the rainwater collection system, after the system has been installed but before applying the anti-condensation membrane. During installation, the gutter flashing must overlap the gutter by 5 cm. Its role is to direct the water from the roof into the gutter and to protect the wooden structure of the roof, even when a rainwater collection system is not installed.
BORDER BAR GRADE
BORDER BAR GRADE
It is installed at the edge of the roof, after installing the gutter grade and before installing the roof tile panels. Its role is to gather water infiltrations that may occur due to lack of perpendicularity between the edge of the roof and the gutter edge.
RIDGE ANGLE
RIDGE ANGLE
It is used to close the upper ridge area, in case a roof slope intersects one of the vertical building walls.
EDGE ANGLE BRACKET
EDGE ANGLE BRACKET
Used together with the corner edge eaves flashing / water deviation eaves flashing at the side closure of the roof.
BLIND WALL ANGLE
BLIND WALL ANGLE
It is used at the intersection between a wall / blind wall and a roof slope, at a blunt angle. The slope angle starts at the intersection with the wall. The blind wall angle is mounted in the wall.
FASCIA COVERING PROFILE
FASCIA COVERING PROFILE
Used to cover and seal the side fascia areas that remain exposed after the installation of the roofing.
TRANSITION FLASHING – OUTSIDE
TRANSITION FLASHING – OUTSIDE
It is used at the transition from a smoother to a steeper slope, on the same roof ridge.
TRANSITION FLASHING – INSIDE
TRANSITION FLASHING – INSIDE
It is used at the transition from a steeper to a smoother slope, on the same roof ridge.
CREST CAP
CREST CAP
Used to close the round finned ridge. Pre-drilled to ensure efficient ventilation.
SNOW GUARD
SNOW GUARD
It is used for low-slope roofing. It is mounted in a triangular pattern to gradually break the snow mass sliding off the roof.
SNOW STOPPER
SNOW STOPPER
Designed for steep-slope roofing, it prevents snow from sliding off the roof surface. It is installed alternately, with overlaps, to ensure complete coverage of the slope, and positioned so that the building structure can safely withstand the weight of accumulated snow.
