SCANDINAV
Designed in Finland, it is a perfect fit for those who prefer simplicity and safety
SMART BENEFITS

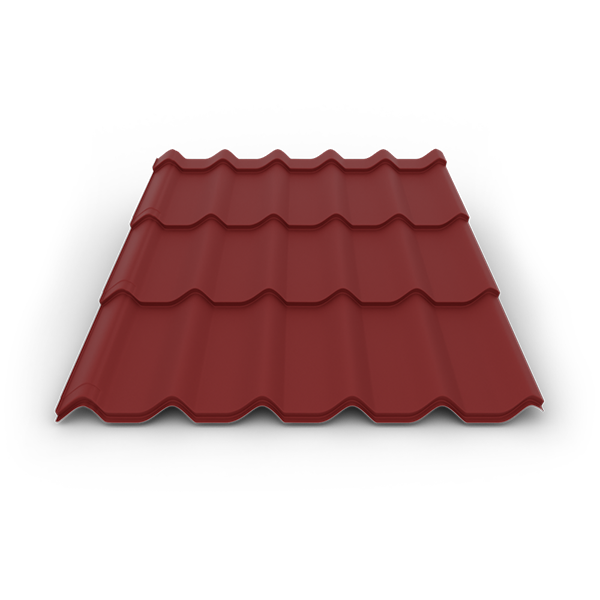

SMART Scandinav metal tile is a modern metal roofing profile characterized by clean lines and balanced proportions inspired by Nordic architecture. The profile design provides an elegant and uniform roof appearance, suitable for residential buildings or projects where a clean and well-defined roofing aspect is desired.
The Scandinav profile is designed with technical details optimized for tightness and secure installation, including an integrated drainage channel that contributes to water evacuation from the lateral joint area and reduces the risk of accidental water infiltration. The profile geometry allows precise overlapping of the metal panels, ensuring the stability and durability of the entire roofing system.
The profile height is slightly lower compared to other similar profiles, providing a more discreet roof texture and a balanced surface appearance.
SMART Scandinav metal tile is manufactured from pre-painted galvanized steel sheet, protected through a multilayer system against corrosion and climatic factors. The model is available in glossy polyester and matte polyester finishes, in thicknesses of 0.4 mm, 0.45 mm and 0.5 mm, offering flexibility in choosing the suitable solution for different types of projects.
The low weight, efficient installation and compatibility with all roofing accessories make SMART Scandinav a reliable solution for creating durable metal tile roofing systems.
Successfully blends into most architectural styles
Minimum maintenance (no regular interventions: painting, varnishing, treatments against insects, sun or humidity)
Complete range of accessories
Technical warranty of up to 15 years
Recyclable product
Mechanical resistance in harsh weather conditions FINISHES & COLORS
Matt
Metal sheet coated with a matt polyester layer, with low gloss, suitable for roofing and cladding.
Glossy
Metal sheet coated with a glossy polyester layer, with a smooth surface and a brighter appearance, suitable for roofing and cladding.
Displayed product colors could vary from one screen to another, according to the display's settings or filters used. For best accuracy please make sure that you ask a sales representative for a color plate sampler.

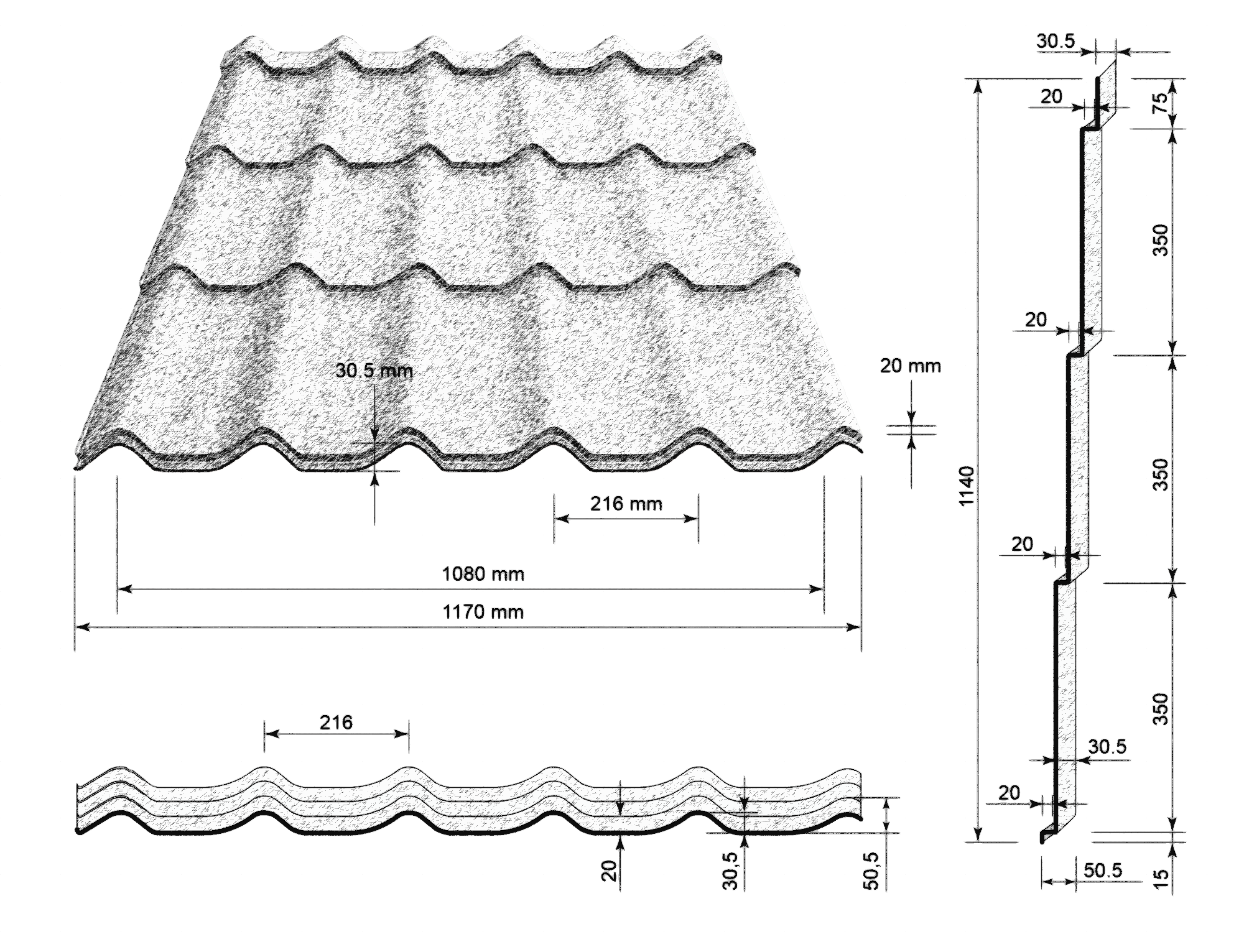

TECHNICAL SPECIFICATIONS
- Total width 1170 mm
- Useful width 1080 mm
- Profile depth 30.5 mm
- Tile step height 20 mm
- Total profile height 50.5 mm
- Battening distance 350 mm
- Minimum installation slope 14°
- Weight 4 Kg / m²
- Thickness 0.50 mm
- Length 440 - 6000 mm
SMART ACCESSORIES
ROUND FINNED CREST
ROUND FINNED CREST
Used to close the intersection between 2 roof slopes, straight or angle-mounted.
STRAIGHT RIDGE
STRAIGHT RIDGE
Used to close the intersection between 2 roof slopes, straight or angle-mounted.
WALL EAVES METAL ROOF TILE
WALL EAVES METAL ROOF TILE
It is mounted at the intersection between a wall or blind wall and a roof slope, at a straight angle. The pitch angle runs along the blind wall. It is fastened onto the wall.
VALLEY
VALLEY
Mounted at the intersection of two roof slopes. A 70 mm limit is marked along both sides of the valley axis, which determines the overlap of the tile panels.
GUTTER GRADE
GUTTER GRADE
It is mounted on the wooden structure intended for fixing the rainwater collection system, after the system has been installed but before applying the anti-condensation membrane. During installation, the gutter flashing must overlap the gutter by 5 cm. Its role is to direct the water from the roof into the gutter and to protect the wooden structure of the roof, even when a rainwater collection system is not installed.
BORDER BAR GRADE
BORDER BAR GRADE
It is installed at the edge of the roof, after installing the gutter grade and before installing the roof tile panels. Its role is to gather water infiltrations that may occur due to lack of perpendicularity between the edge of the roof and the gutter edge.
RIDGE ANGLE
RIDGE ANGLE
It is used to close the upper ridge area, in case a roof slope intersects one of the vertical building walls.
EDGE ANGLE BRACKET
EDGE ANGLE BRACKET
Used together with the corner edge eaves flashing / water deviation eaves flashing at the side closure of the roof.
BLIND WALL ANGLE
BLIND WALL ANGLE
It is used at the intersection between a wall / blind wall and a roof slope, at a blunt angle. The slope angle starts at the intersection with the wall. The blind wall angle is mounted in the wall.
FASCIA COVERING PROFILE
FASCIA COVERING PROFILE
Used to cover and seal the side fascia areas that remain exposed after the installation of the roofing.
TRANSITION FLASHING – OUTSIDE
TRANSITION FLASHING – OUTSIDE
It is used at the transition from a smoother to a steeper slope, on the same roof ridge.
TRANSITION FLASHING – INSIDE
TRANSITION FLASHING – INSIDE
It is used at the transition from a steeper to a smoother slope, on the same roof ridge.
CREST CAP
CREST CAP
Used to close the round finned ridge. Pre-drilled to ensure efficient ventilation.
SNOW GUARD
SNOW GUARD
It is used for low-slope roofing. It is mounted in a triangular pattern to gradually break the snow mass sliding off the roof.
SNOW STOPPER
SNOW STOPPER
Designed for steep-slope roofing, it prevents snow from sliding off the roof surface. It is installed alternately, with overlaps, to ensure complete coverage of the slope, and positioned so that the building structure can safely withstand the weight of accumulated snow.
SMART INSTALLATION PRINCIPLES
Roof length shall be calculated between the eaves line and the ridge line, the metal tile panels being calculated as multiple of the length of a module (35 cm).
Shall be mounted on the batten for the rainwater collection system, after installing the latter, but before installing the anti-condensation foil. For installation, a 5 cm overlay with the gutter shall be used.
Shall be fastened with clamps, without drilling any holes. The valley flashing shall be installed at the intersection between 2 slopes of the roof.
The border bar grade is used to collect rainwater from the sides of the roof.
The panels are placed from right to left, from the bottom. Before starting installation, we need to determine the angle between the eaves and the gable. Depending on the result obtained, the panels will be cut for perpendicular positioning on the eaves.
The border bar shall be installed over the metal tiles and the plank bordering the roof (fascia) and shall be set with self-drilling screws every 70 to 70 cm.
The ridges shall be set with self-drilling screws in the tangential spots of the metal tiles.
Shall be used for closing ribbed ridge tiles. It has holes to ensure proper ventilation of the entire roofing system.
Shall be installed in roofs with higher pitches, 70 cm from the lower edge of the roof.
They shall be installed in a triangle shape, in order to cut the mass of snow sliding from the roof, step by step.
