POINTED

A simple and efficient solution for fencing and a modern alternative to the traditional wooden fence

SMART BENEFITS

Quick and easy assembly Quick and easy assembly which can be carried out by the customer without the help of a professional
Rigidity adapted to the profile type Rigidity adapted to the profile type
Minimum maintenance Minimum maintenance (no regular interventions: painting, varnishing, treatments against insects, sun or humidity)
Possibility of customization Possibility of customization (sizes / colors)
Can be installed horizontally or vertically Can be installed horizontally or vertically
Technical warranty of up to 15 years Technical warranty of up to 15 years

FINISHES & COLORS

POINTED

Decor

The best-performing sheet-metal coating product, it is applied in 10 layers and offers the longest lifespan.

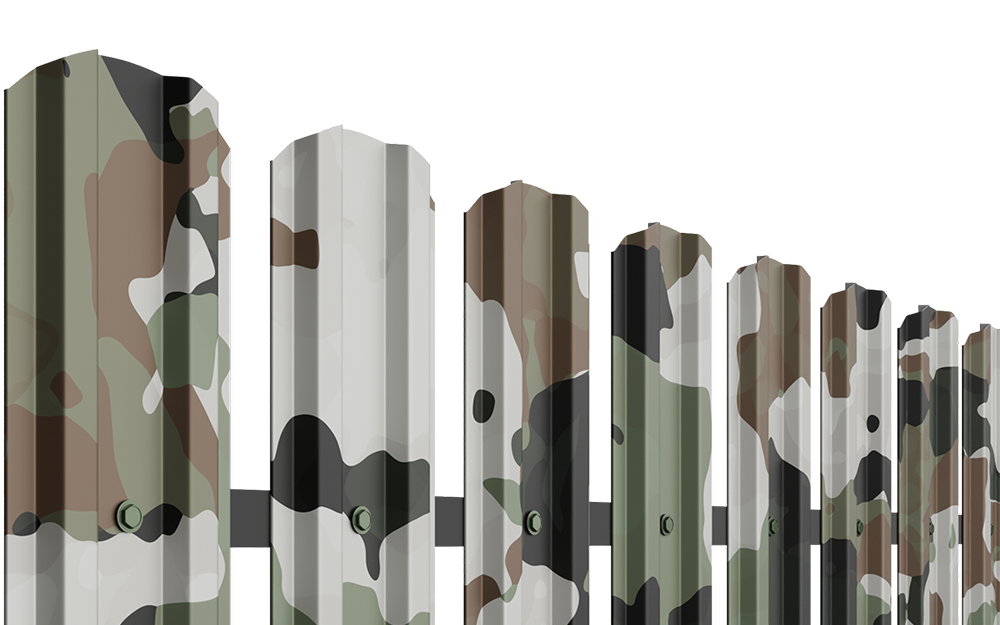

Camouflage Golden Oak Walnut Korten Weathered Hairline Copper

High Matt

Finish with a 40-micron polyester paint layer, 5 microns thicker than the standard finish. The 3D textured surface provides a distinctive appearance and a pronounced matt finish.

RAL 3005 RAL 3009 RAL 6005 RAL 7016 RAL 7024 RAL 8017 RAL 8019 RAL 9006

Matt

Metal sheet coated with a matt polyester layer, with low gloss, suitable for roofing and cladding.

RAL 3011 RAL 7016 RAL 8017 RAL 8019 RAL 9005

Glossy

Metal sheet coated with a glossy polyester layer, with a smooth surface and a brighter appearance, suitable for roofing and cladding.

RAL 3005 RAL 3009 RAL 3011 RAL 7016 RAL 7024 RAL 8004 RAL 8016 RAL 8017 RAL 8019 RAL 9002 RAL 9005 RAL 9006 RAL 9010

Natur

Finish with a protective zinc layer designed to protect the metal surface against corrosion.

ZINC

Displayed product colors could vary from one screen to another, according to the display's settings or filters used. For best accuracy please make sure that you ask a sales representative for a color plate sampler.

TECHNICAL SPECIFICATIONS

POINTED
  • Total width of a slat 90 mm
  • Profile depth 9 mm
  • Thickness 0.40 | 0.45 | 0.50 | 0.60 mm
  • Height variable
  • Number of slats per linear meter of fence 9

SMART INSTALLATION PRINCIPLES

step 1

The metal slat is mounted on a horizontal grid, which can be made of wood—using self-drilling screws for wood fixing—or on a rectangular iron pipe, using self-drilling screws for metal fixing. For slats with lengths of up to 1.7 m, at least three horizontal supports will be used, and for lengths of 2 m, four horizontal supports are required. The horizontal supports are fixed to the fence posts.

Screw calculation:

  • For slats up to 1.7 m long, fixed on 3 horizontal supports, use 3 screws* for each slat.
  • For slats up to 2 m long, fixed on 4 horizontal supports, use 4 screws* for each slat.

Make sure to order the correct type of screw depending on the support material: for wood or for metal.
