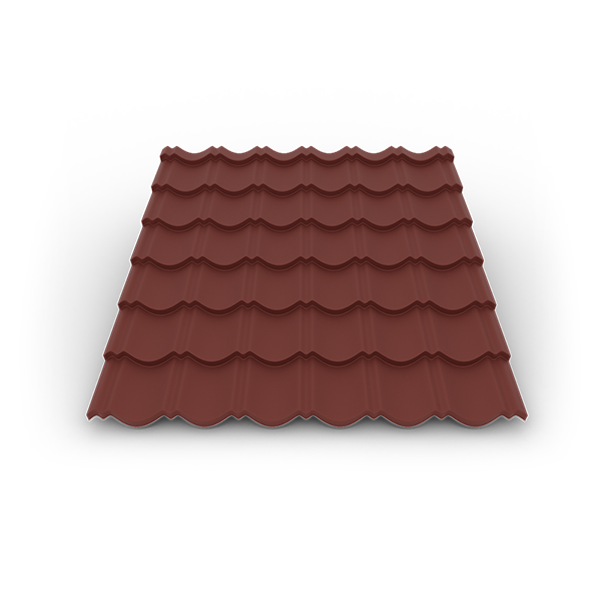

EASY TILE
Easy Tile Metal Roof is a symmetrically designed metal tile which has a traditional look, and it is suitable for all kind of secondary roof tile applications
SMART BENEFITS
SMART Easy Tile metal tile is a metal roofing tile profile specially designed for small-scale constructions or roofs with short slopes, where the proportions of classic metal tile profiles are not always ideal.
The defining feature of this model is the reduced profiling pitch of 143 mm, significantly smaller than that of standard metal tiles. Thanks to this higher profiling frequency, the roof gains a uniform and proportional texture even on small surfaces, making it suitable for garden gazebos, storage sheds, carports, garden houses, or other household annexes.
The symmetrical design of the profile contributes to installation efficiency and easy handling of the panels, while the rounded wave shape preserves the familiar appearance of a metal tile roof, adapted for smaller constructions.
SMART Easy Tile metal tile is manufactured from pre-painted galvanized steel sheet, protected through a multilayer system against corrosion and climatic factors. The lightweight structure of the roofing metal panels reduces the load on the construction and allows for fast and efficient installation.
Through the combination of the reduced profile pitch, optimized panel dimensions, and simple installation, SMART Easy Tile metal tile represents a practical and aesthetic solution for creating durable roofs on auxiliary buildings or household annexes.
Extremely easy to install
Lightweight material
Mechanical resistance in harsh weather conditions
Infiltration stop profile and drainage channel are integrated in the design of the profile on both sides of the panel
An efficient profile with narrow width,
easier to transport than other metal roof tiles FINISHES & COLORS
Matt
Metal sheet coated with a matt polyester layer, with low gloss, suitable for roofing and cladding.
Glossy
Metal sheet coated with a glossy polyester layer, with a smooth surface and a brighter appearance, suitable for roofing and cladding.
Displayed product colors could vary from one screen to another, according to the display's settings or filters used. For best accuracy please make sure that you ask a sales representative for a color plate sampler.

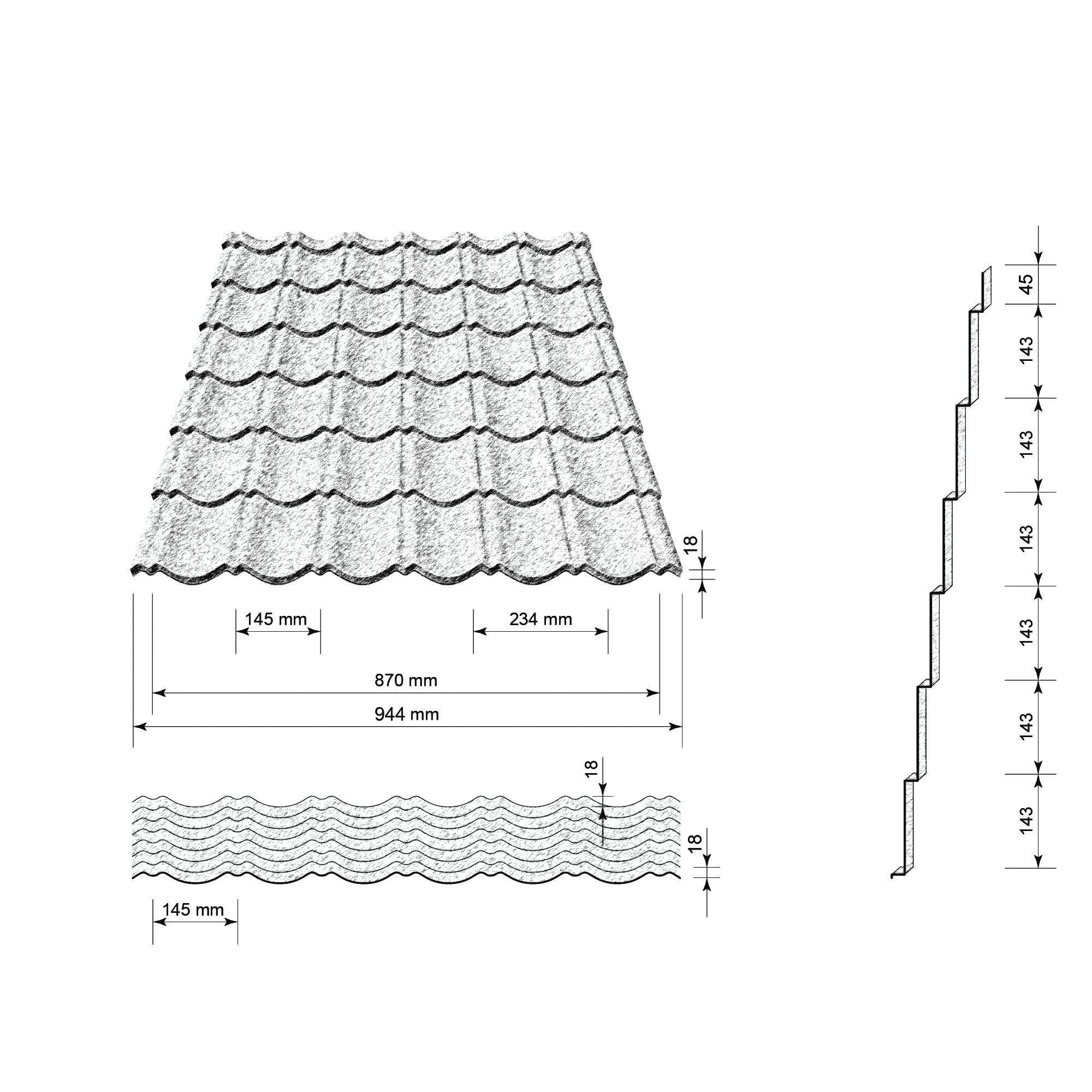

TECHNICAL SPECIFICATIONS
- Total width 944 mm
- Useful width 870 mm
- Profile depth 18 mm
- Tile step height 18 mm
- Total profile height 38 mm
- Battening distance 286 mm
- Minimum installation slope 14°
- Weight 3 Kg / m²
- Thickness 0.40 mm
- Length 8 modules 1212 mm
- Length 14 modules 2095 mm
SMART ACCESSORIES
ROUND FINNED CREST
ROUND FINNED CREST
Used to close the intersection between 2 roof slopes, straight or angle-mounted.
STRAIGHT RIDGE
STRAIGHT RIDGE
Used to close the intersection between 2 roof slopes, straight or angle-mounted.
WALL EAVES METAL ROOF TILE
WALL EAVES METAL ROOF TILE
It is mounted at the intersection between a wall or blind wall and a roof slope, at a straight angle. The pitch angle runs along the blind wall. It is fastened onto the wall.
VALLEY
VALLEY
Mounted at the intersection of two roof slopes. A 70 mm limit is marked along both sides of the valley axis, which determines the overlap of the tile panels.
GUTTER GRADE
GUTTER GRADE
It is mounted on the wooden structure intended for fixing the rainwater collection system, after the system has been installed but before applying the anti-condensation membrane. During installation, the gutter flashing must overlap the gutter by 5 cm. Its role is to direct the water from the roof into the gutter and to protect the wooden structure of the roof, even when a rainwater collection system is not installed.
BORDER BAR GRADE
BORDER BAR GRADE
It is installed at the edge of the roof, after installing the gutter grade and before installing the roof tile panels. Its role is to gather water infiltrations that may occur due to lack of perpendicularity between the edge of the roof and the gutter edge.
RIDGE ANGLE
RIDGE ANGLE
It is used to close the upper ridge area, in case a roof slope intersects one of the vertical building walls.
EDGE ANGLE BRACKET
EDGE ANGLE BRACKET
Used together with the corner edge eaves flashing / water deviation eaves flashing at the side closure of the roof.
BLIND WALL ANGLE
BLIND WALL ANGLE
It is used at the intersection between a wall / blind wall and a roof slope, at a blunt angle. The slope angle starts at the intersection with the wall. The blind wall angle is mounted in the wall.
FASCIA COVERING PROFILE
FASCIA COVERING PROFILE
Used to cover and seal the side fascia areas that remain exposed after the installation of the roofing.
TRANSITION FLASHING – OUTSIDE
TRANSITION FLASHING – OUTSIDE
It is used at the transition from a smoother to a steeper slope, on the same roof ridge.
TRANSITION FLASHING – INSIDE
TRANSITION FLASHING – INSIDE
It is used at the transition from a steeper to a smoother slope, on the same roof ridge.
CREST CAP
CREST CAP
Used to close the round finned ridge. Pre-drilled to ensure efficient ventilation.
SNOW GUARD
SNOW GUARD
It is used for low-slope roofing. It is mounted in a triangular pattern to gradually break the snow mass sliding off the roof.
SNOW STOPPER
SNOW STOPPER
Designed for steep-slope roofing, it prevents snow from sliding off the roof surface. It is installed alternately, with overlaps, to ensure complete coverage of the slope, and positioned so that the building structure can safely withstand the weight of accumulated snow.
