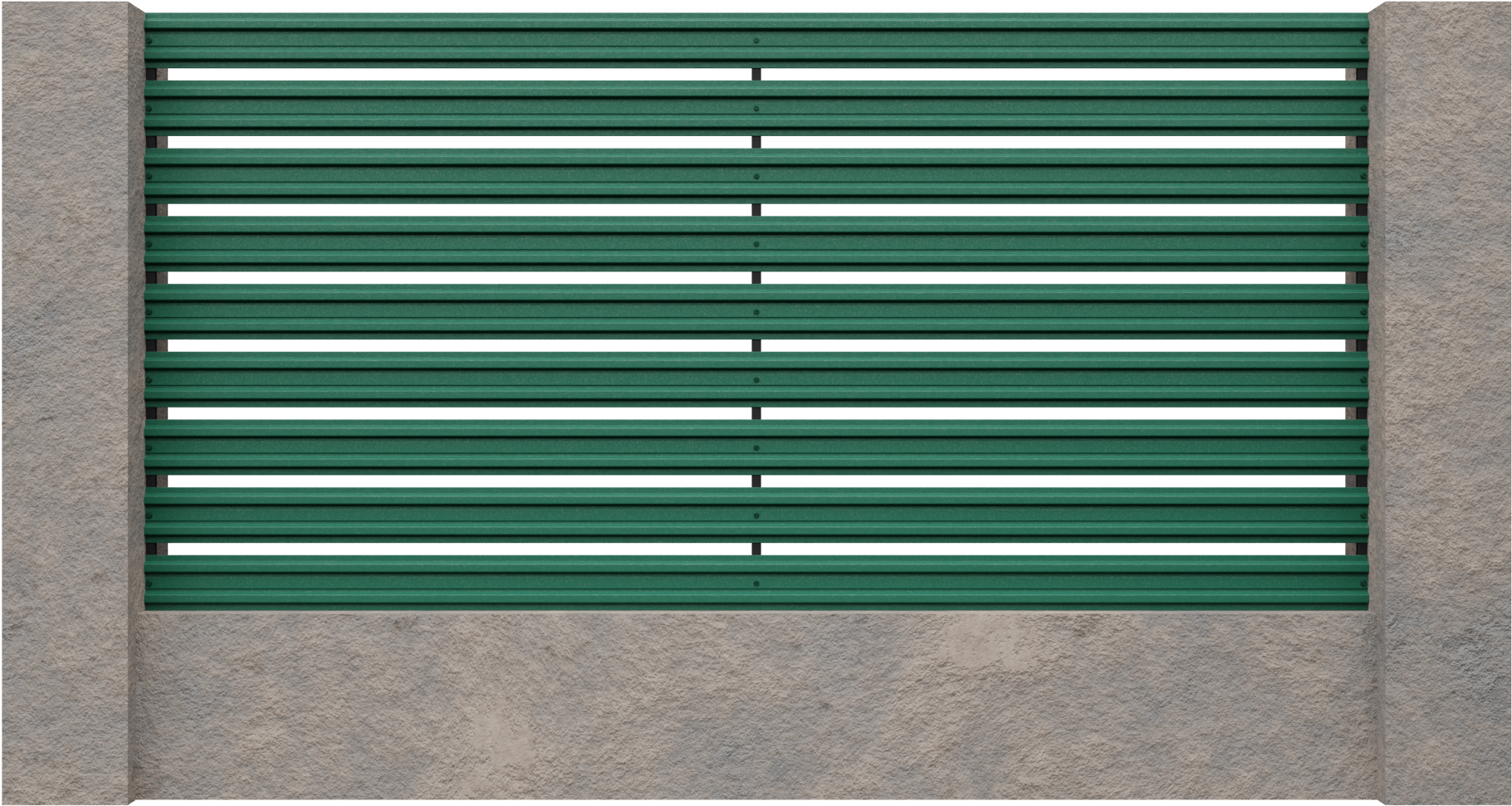

HORIZONTAL

A simple and efficient solution for fencing and a modern alternative to the traditional wooden fence

SMART BENEFITS

Quick and easy assembly Quick and easy assembly which can be carried out by the customer without the help of a professional
Rigidity adapted to the profile type Rigidity adapted to the profile type
Minimum maintenance Minimum maintenance (no regular interventions: painting, varnishing, treatments against insects, sun or humidity)
Possibility of customization Possibility of customization (sizes / colors)
Can be installed horizontally or vertically Can be installed horizontally or vertically
Technical warranty of up to 15 years Technical warranty of up to 15 years

FINISHES & COLORS

HORIZONTAL

Decor

The best-performing sheet-metal coating product, it is applied in 10 layers and offers the longest lifespan.

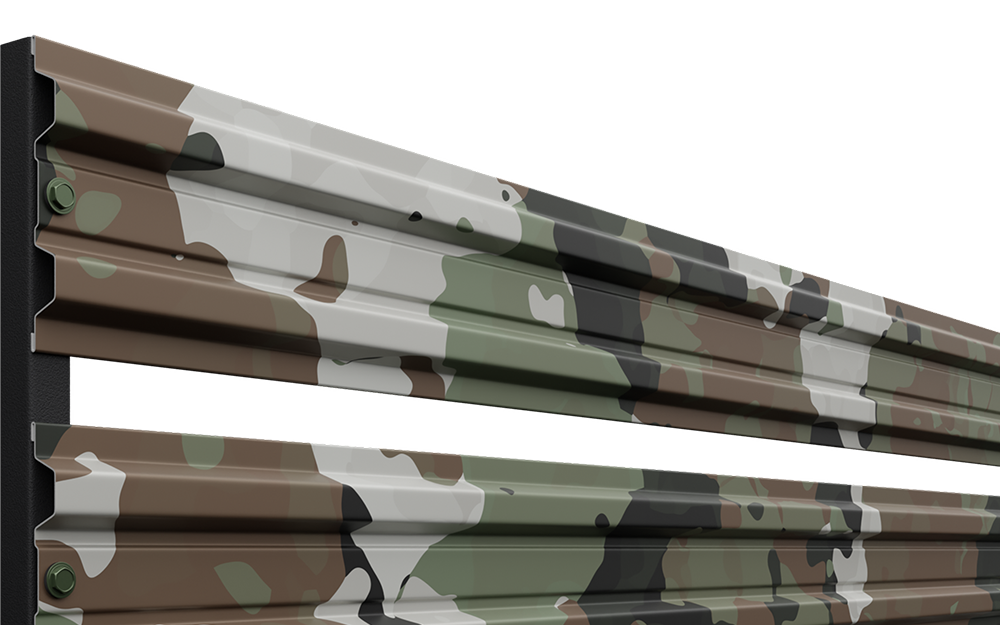

Camouflage Golden Oak Walnut Korten Weathered Hairline Copper

High Matt

Finish with a 40-micron polyester paint layer, 5 microns thicker than the standard finish. The 3D textured surface provides a distinctive appearance and a pronounced matt finish.

RAL 3005 RAL 3009 RAL 6005 RAL 7016 RAL 7024 RAL 8017 RAL 8019 RAL 9006

Matt

Metal sheet coated with a matt polyester layer, with low gloss, suitable for roofing and cladding.

RAL 3011 RAL 7016 RAL 8017 RAL 8019 RAL 9005

Glossy

Metal sheet coated with a glossy polyester layer, with a smooth surface and a brighter appearance, suitable for roofing and cladding.

RAL 3005 RAL 3009 RAL 3011 RAL 7016 RAL 7024 RAL 8004 RAL 8016 RAL 8017 RAL 8019 RAL 9002 RAL 9005 RAL 9006 RAL 9010

Natur

Finish with a protective zinc layer designed to protect the metal surface against corrosion.

ZINC

Displayed product colors could vary from one screen to another, according to the display's settings or filters used. For best accuracy please make sure that you ask a sales representative for a color plate sampler.

TECHNICAL SPECIFICATIONS

HORIZONTAL
  • Total width variable
  • Profile depth 9 mm
  • Thickness 0.40 | 0.45 | 0.50 | 0.60 mm
  • Height of one piece 90 mm

SMART INSTALLATION PRINCIPLES

step 1 Supports
For the horizontal assembly of the fence slats, a keel of vertical supports made of wood or metal must be created:
  • 3 supports for lengths less than or equal to 1.7 m
  • 4 supports for 2 m length

Vertical supports could be either metal or wood.

step 2 Mounting the slats

For slats with lengths up to 1.7m fixed in 3 vertical supports, 3 screws* should be used for each slat.
For slats with lengths up to 2m fixed in 4 vertical supports, 4 screws* must be used for each slat.

*Make sure you order the correct type of screw depending on the type of support: wood or metal

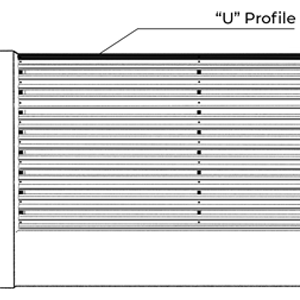

step 3 Installation of “U” Profile

After installing the horizontal slats proceed with the installation of the “U” profile placing it above the upper slat and fastening it with screws.
